Medical Application Push Pull Electrical Connectors 4P 5P 12P

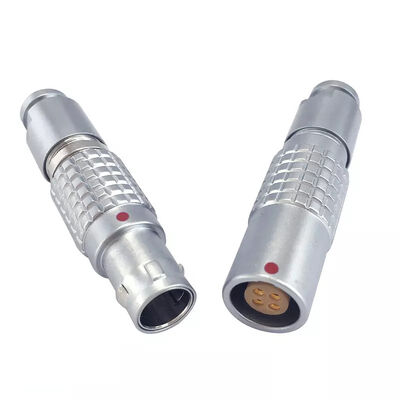

Large Image : Medical Application Push Pull Electrical Connectors 4P 5P 12P

Product Details:

Place of Origin:	China
Brand Name:	SSY
Certification:	ISO13485/ROHS/UL
Model Number:	FGG.2K

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	1~6USD
Packaging Details:	carton
Delivery Time:	4~6weeks
Payment Terms:	T/T
Supply Ability:	999999

Contact Now

Detailed Product Description

Material:	Coppor/PPS	Application:	Audio/Video
IP Rating:	68	Pins:	6~8Pins
Color:	Sliver	Type:	Push Pull Connecotr
Highlight:	Medical Application Push Pull Electrical Connectors 4P 5P 12P , 4P 5P 12P Medical Application Push Pull Electrical Connectors , 4P 5P 12P Medical Push Pull Electrical Connectors

Medical application Circular metal push pull connector 4P 5P 12P 14P 16P 36P

Characteristics	Parameter
Locking type	Push pull self-latching type
Working Temperature	-55°~+250°
Maximum Humidity	up to 95% at 60°/140°F
Shielding Efficiency	75 dB (10 MHz) 40 dB (1 GHz)
Resistance to Vibration	15 g [10 Hz - 2000 Hz]
Salt spray corrosion test	96hr
Shock resistance	100g.6ms
Endurance	5000 cycles
Protection index(mated)	IP68

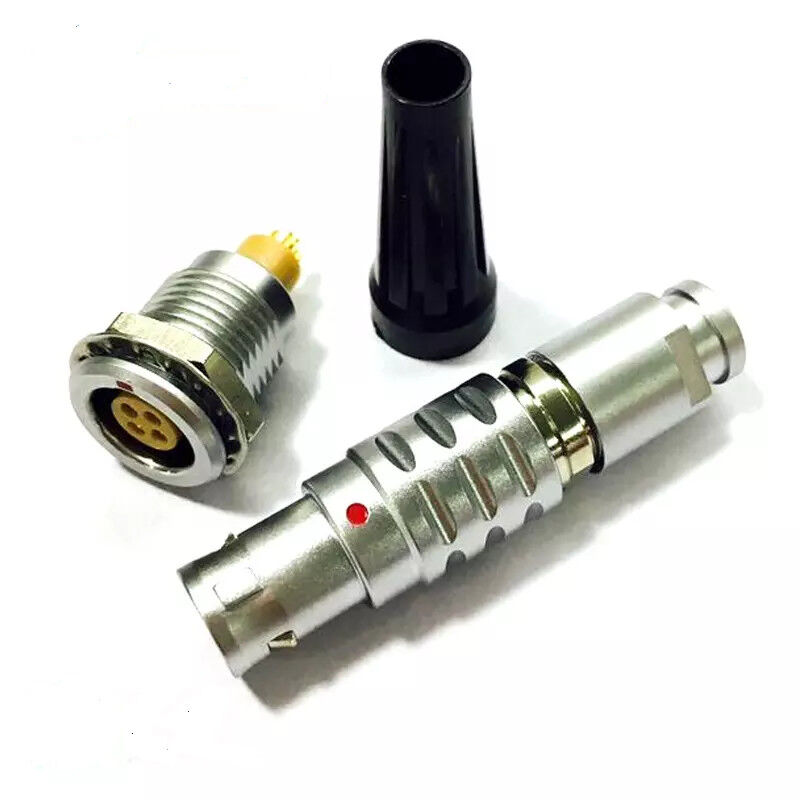

Medical Application Push Pull Electrical Connectors 4P 5P 12P 0

MAIN FEATURES

1.Secuity of the push-pull self-latching systerm

2.Multipol types

3.High packing density for space saving

4. Keying system for connecotr alinment

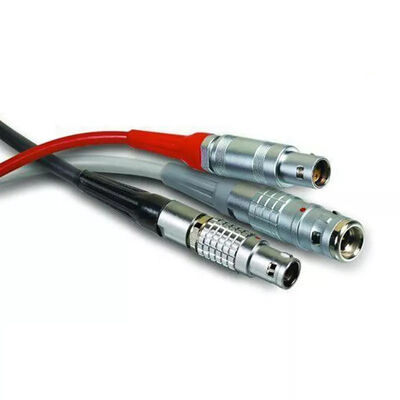

Medical Application Push Pull Electrical Connectors 4P 5P 12P 1

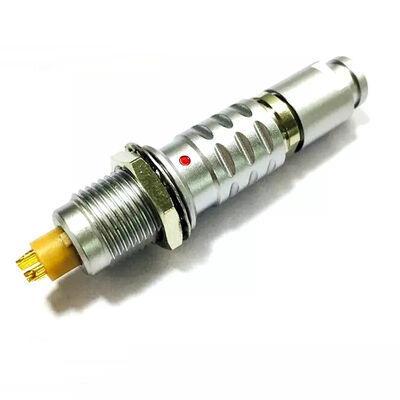

Medical Application Push Pull Electrical Connectors 4P 5P 12P 2
